一、适配器链接多个mqtt平台
Aprus适配器可以同时链接多个mqtt平台，仅需按照一定规则配置即可实现
1.AX-6212、AX-6213同时链接两个mqtt平台；
4G链接公网mqtt平台，北向网口链接局域网mqtt平台
aprus.lua需要添加项

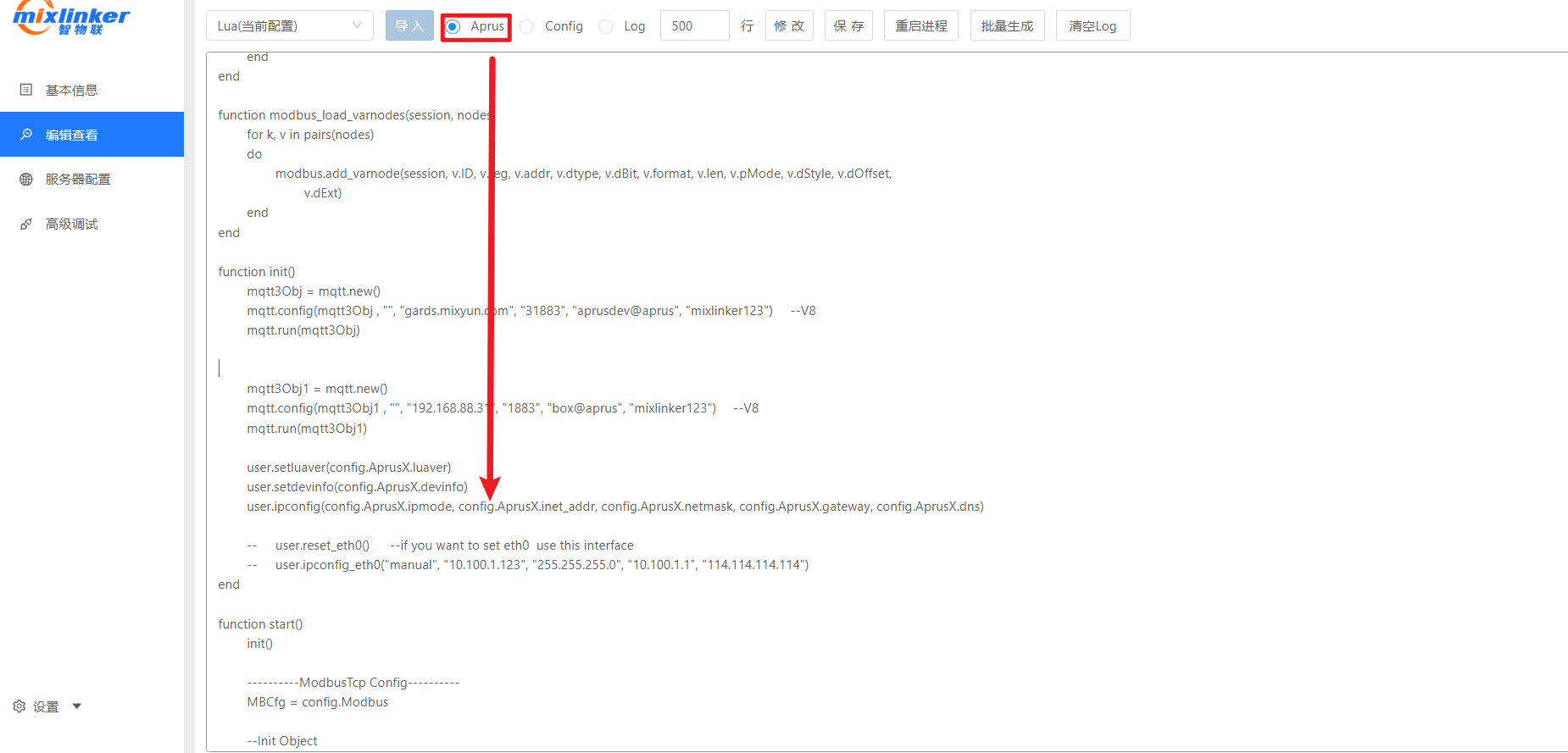

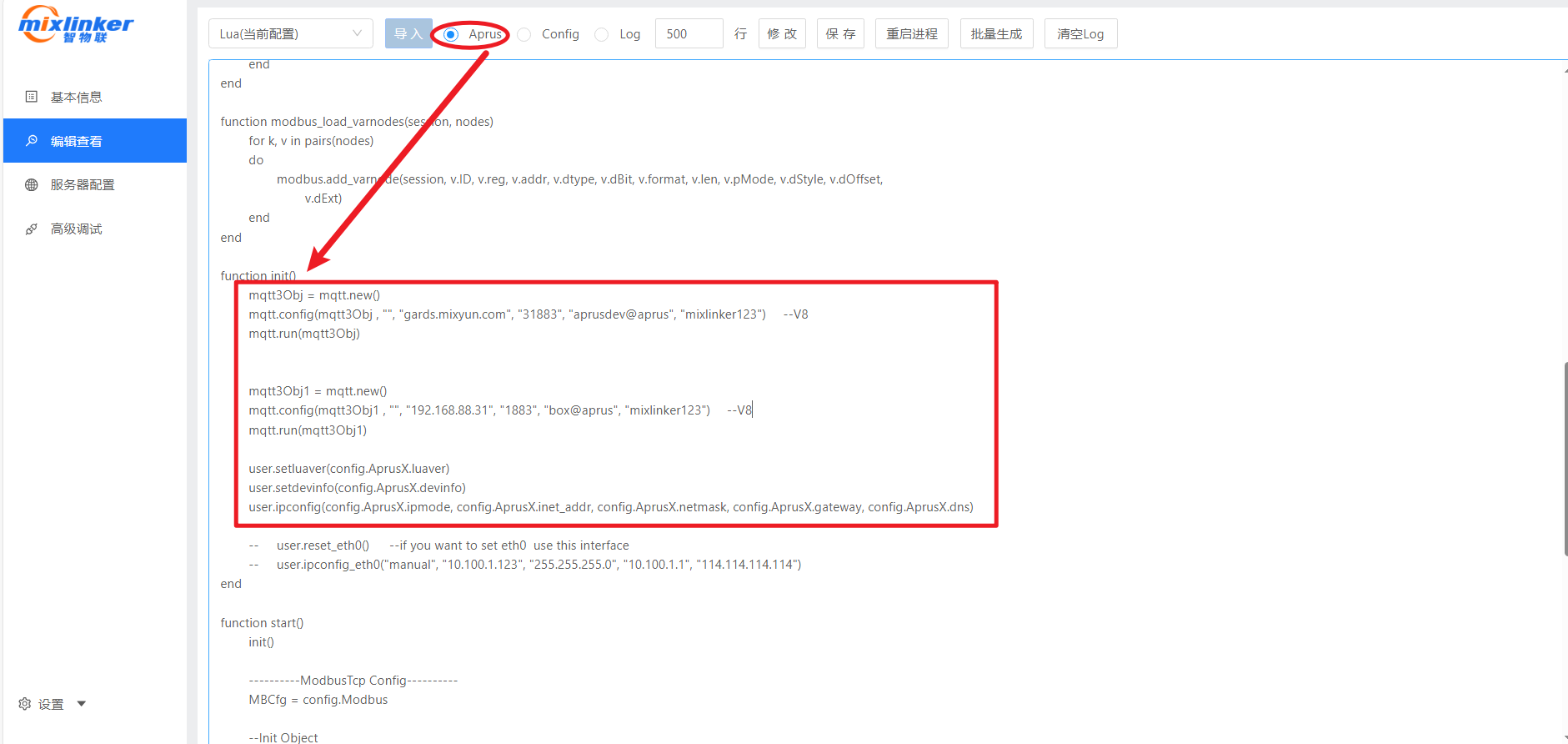

（1）init函数中配置两个mqtt实例对象,mqtt3bj和mqtt3Obj1
mqtt3Obj = mqtt.new()
mqtt.config(mqtt3Obj , "", "gards.mixyun.com", "31883", "aprusdev@aprus", "mixlinker123") --V8
mqtt.run(mqtt3Obj)
mqtt3Obj1 = mqtt.new()
mqtt.config(mqtt3Obj1 , "", "192.168.88.31", "1883", "box@aprus", "mixlinker123") --V8
mqtt.run(mqtt3Obj1)（2）配置北向网口IP地址及路由
user.ipconfig(config.AprusX.ipmode, config.AprusX.inet_addr, config.AprusX.netmask, config.AprusX.gateway, config.AprusX.dns)（3）配置上报两个平台的报文，在modbusevent_handle函数中
将mqtt.publish语句复制一遍，将mqtt3Obj和mqtt3Obj1分别填入

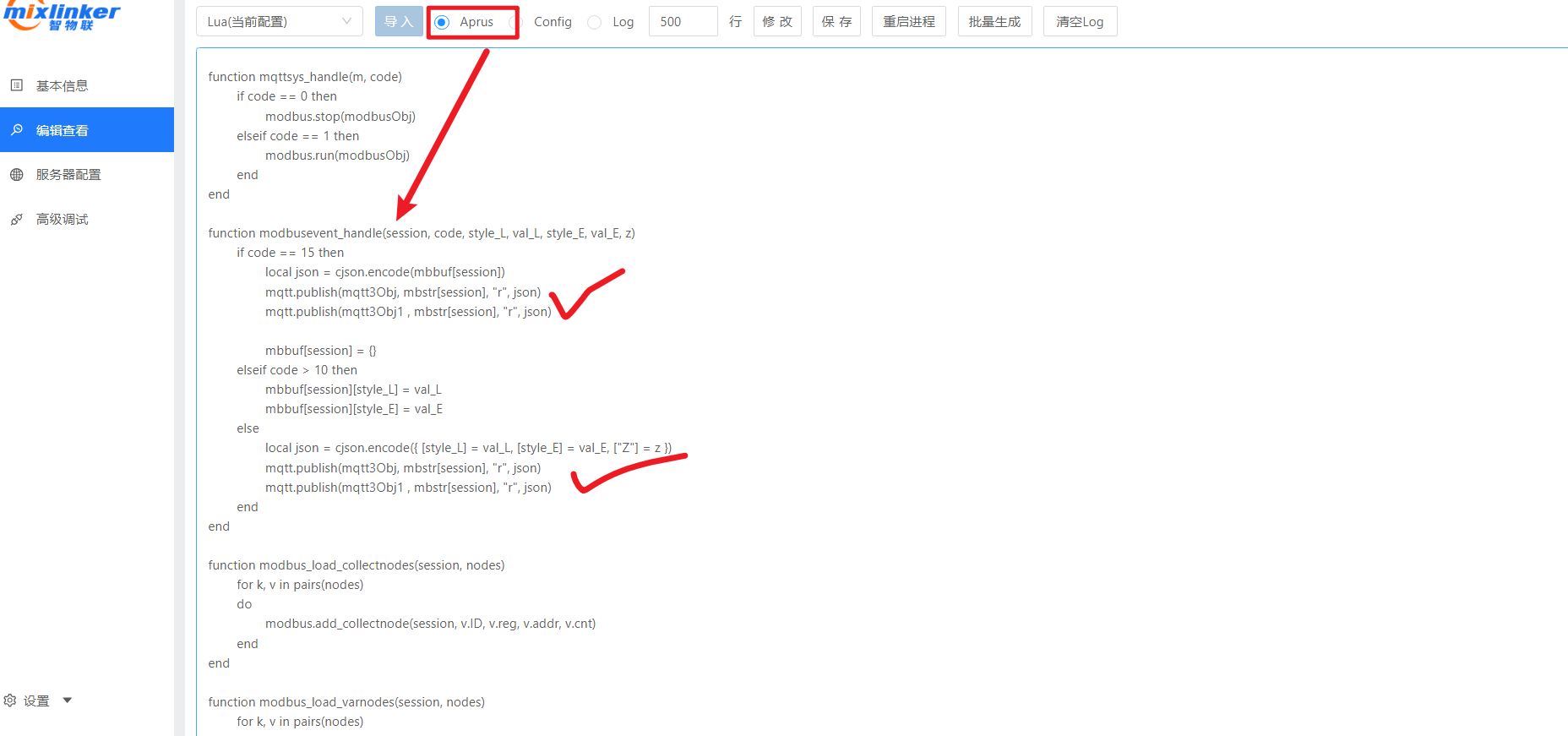

完整的在modbusevent_handle函数如下所示
function modbusevent_handle(session, code, style_L, val_L, style_E, val_E, z)
if code == 15 then
local json = cjson.encode(mbbuf[session])
mqtt.publish(mqtt3Obj, mbstr[session], "r", json)
mqtt.publish(mqtt3Obj1 , mbstr[session], "r", json)
mbbuf[session] = {}
elseif code > 10 then
mbbuf[session][style_L] = val_L
mbbuf[session][style_E] = val_E
else
local json = cjson.encode({ [style_L] = val_L, [style_E] = val_E, ["Z"] = z })
mqtt.publish(mqtt3Obj, mbstr[session], "r", json)
mqtt.publish(mqtt3Obj1 , mbstr[session], "r", json)
end
endconfig.lua需要添加项

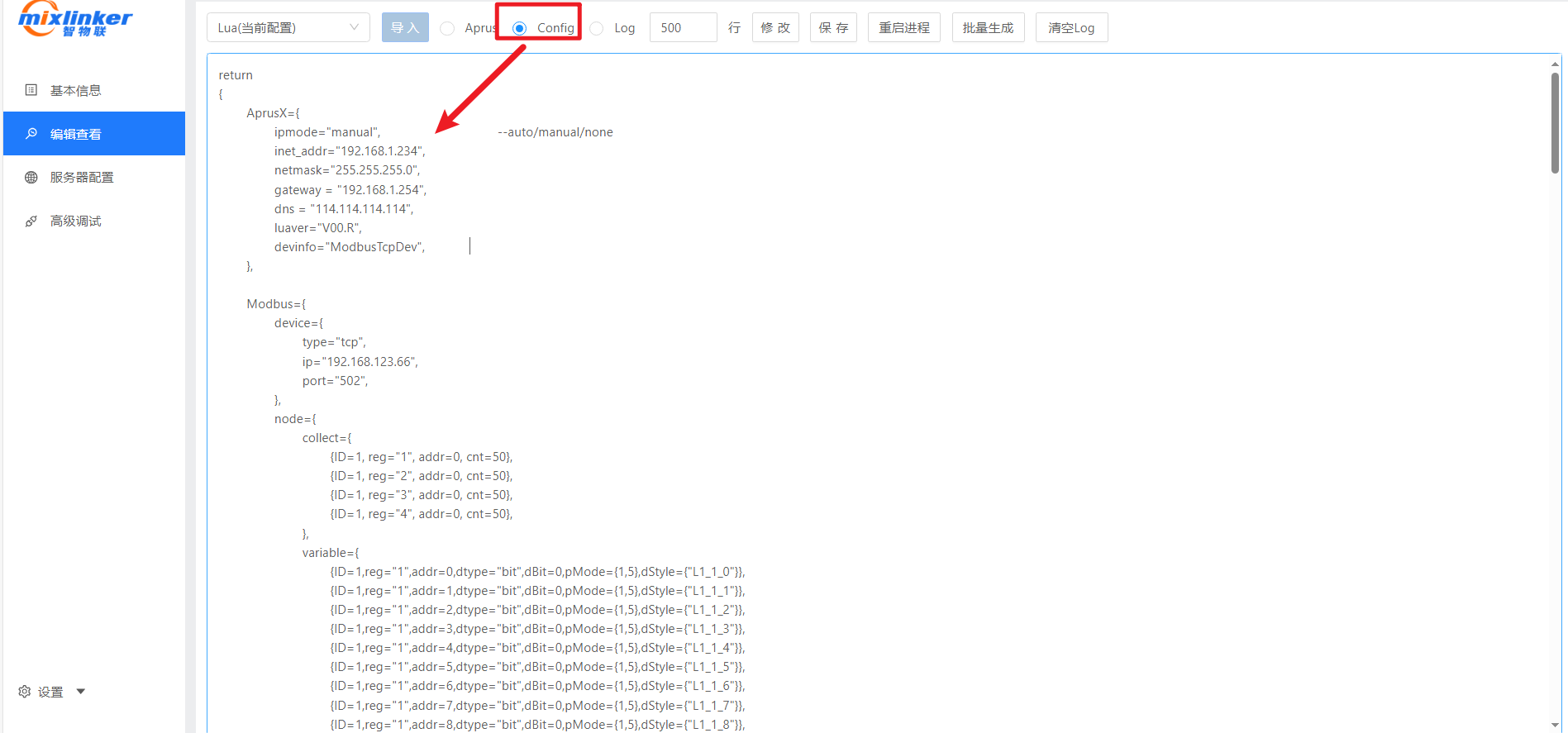

(1)配置实际的网关、路由、DNS及IP地址
AprusX={
ipmode="manual", --auto/manual/none
inet_addr="192.168.1.234",
netmask="255.255.255.0",
gateway = "192.168.1.254",
dns = "114.114.114.114",
luaver="V00.R",
devinfo="ModbusTcpDev",

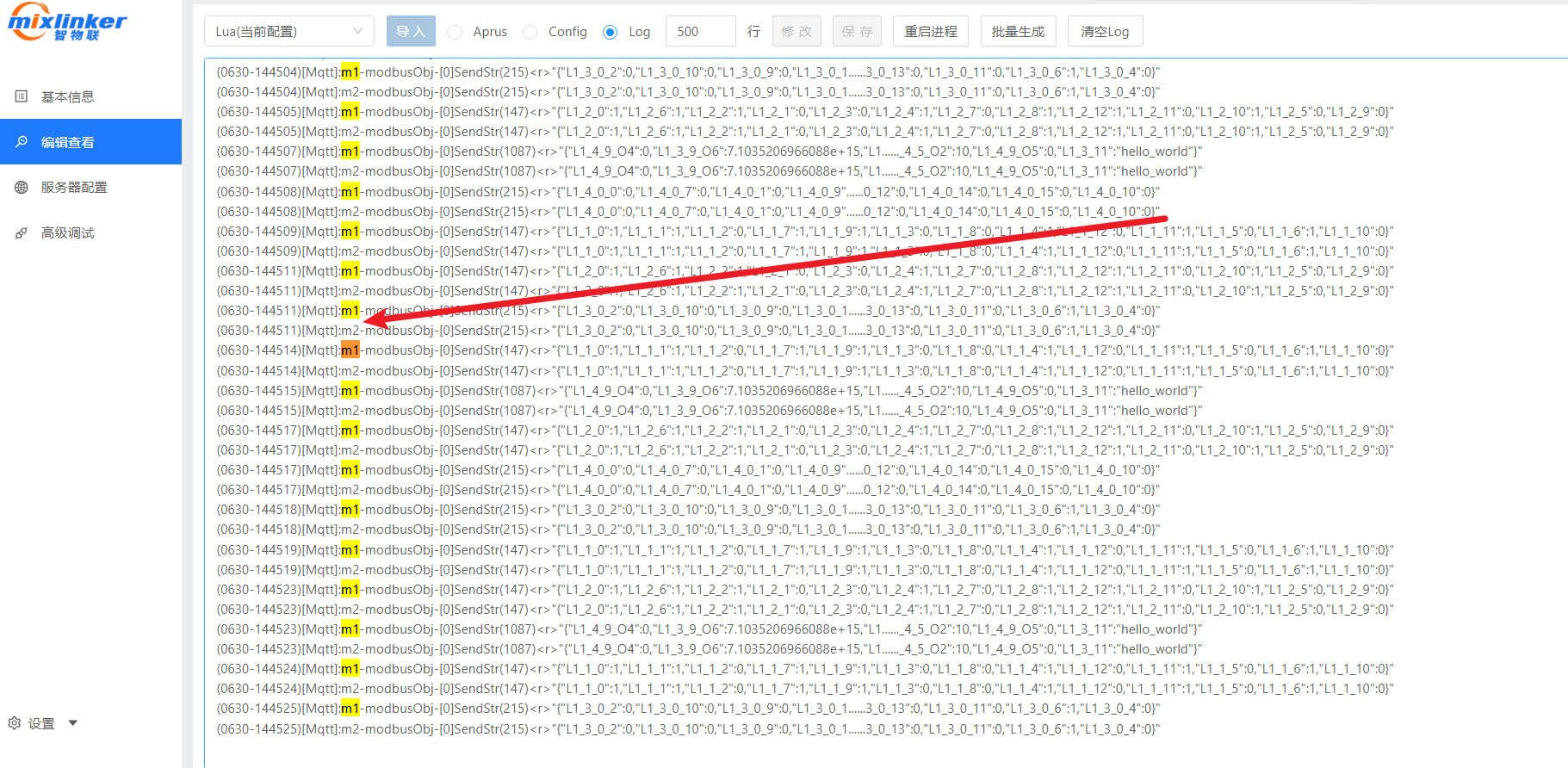

},验证，日志中出现m1和m2上报报文则配置成功，如下图所示
完整的示例脚本配置如下
通过modbusTCP采集数据，通过4G链接公网mqtt平台，北向网口链接局域网mqtt平台
aprus.lua配置
package.cpath = "./?.so"
package.path = "./?.lua"
cjson = require "cjson"
config = require "config"
require "modbus"
function act_control(m, json)
for k, v in pairs(json) do
if k ~= "Act" then
modbus.write(modbusObj, k, v)
end
end
end
function mqttdata_handle(m, topic, data)
local json = cjson.decode(data)
if json.Act == "Control" then
act_control(m, json)
end
end
function mqttsys_handle(m, code)
if code == 0 then
modbus.stop(modbusObj)
elseif code == 1 then
modbus.run(modbusObj)
end
end
function modbusevent_handle(session, code, style_L, val_L, style_E, val_E, z)
if code == 15 then
local json = cjson.encode(mbbuf[session])
mqtt.publish(mqtt3Obj, mbstr[session], "r", json)
mqtt.publish(mqtt3Obj1 , mbstr[session], "r", json)
mbbuf[session] = {}
elseif code > 10 then
mbbuf[session][style_L] = val_L
mbbuf[session][style_E] = val_E
else
local json = cjson.encode({ [style_L] = val_L, [style_E] = val_E, ["Z"] = z })
mqtt.publish(mqtt3Obj, mbstr[session], "r", json)
mqtt.publish(mqtt3Obj1 , mbstr[session], "r", json)
end
end
function modbus_load_collectnodes(session, nodes)
for k, v in pairs(nodes)
do
modbus.add_collectnode(session, v.ID, v.reg, v.addr, v.cnt)
end
end
function modbus_load_varnodes(session, nodes)
for k, v in pairs(nodes)
do
modbus.add_varnode(session, v.ID, v.reg, v.addr, v.dtype, v.dBit, v.format, v.len, v.pMode, v.dStyle, v.dOffset,
v.dExt)
end
end
function init()
mqtt3Obj = mqtt.new()
mqtt.config(mqtt3Obj , "", "gards.mixyun.com", "31883", "aprusdev@aprus", "mixlinker123") --V8
mqtt.run(mqtt3Obj)
mqtt3Obj1 = mqtt.new()
mqtt.config(mqtt3Obj1 , "", "192.168.88.31", "1883", "box@aprus", "mixlinker123") --V8
mqtt.run(mqtt3Obj1)
user.setluaver(config.AprusX.luaver)
user.setdevinfo(config.AprusX.devinfo)
user.ipconfig(config.AprusX.ipmode, config.AprusX.inet_addr, config.AprusX.netmask, config.AprusX.gateway, config.AprusX.dns)
-- user.reset_eth0() --if you want to set eth0 use this interface
-- user.ipconfig_eth0("manual", "10.100.1.123", "255.255.255.0", "10.100.1.1", "114.114.114.114")
end
function start()
init()
----------ModbusTcp Config----------
MBCfg = config.Modbus
--Init Object
modbusObj = nil
mbbuf = { modbusObj }
mbstr = { modbusObj }
--Config Object
modbusObj = modbus.new(MBCfg.device.type)
mbbuf[modbusObj] = {}
mbstr[modbusObj] = "modbusObj"
modbus.config(modbusObj, MBCfg.device.ip, MBCfg.device.port)
--modbus.delay(modbusObj, 50) --设置采集间隔。默认值为20mS --必须在添加采集节点前调用
modbus_load_collectnodes(modbusObj, MBCfg.node.collect)
modbus_load_varnodes(modbusObj, MBCfg.node.variable)
----------------------------------
-- modbus.run(modbusObj)
while true do
local msg = user.waitmsg()
if msg.from == "mqtt-sys" then
mqttsys_handle(msg.session, msg.code)
elseif msg.from == "mqtt-msg" then
mqttdata_handle(msg.session, msg.topic, msg.payload)
elseif msg.from == "modbus" then
modbusevent_handle(msg.session, msg.code, msg.style_L, msg.val_L, msg.style_E, msg.val_E, msg.z)
end
end
end
start()
config.lua配置
return
{
AprusX={
ipmode="manual", --auto/manual/none
inet_addr="192.168.1.234",
netmask="255.255.255.0",
gateway = "192.168.1.254",
dns = "114.114.114.114",
luaver="V00.R",
devinfo="ModbusTcpDev",
},
Modbus={
device={
type="tcp",
ip="192.168.123.66",
port="502",
},
node={
collect={
{ID=1, reg="1", addr=0, cnt=50},
{ID=1, reg="2", addr=0, cnt=50},
{ID=1, reg="3", addr=0, cnt=50},
{ID=1, reg="4", addr=0, cnt=50},
},
variable={
{ID=1,reg="1",addr=0,dtype="bit",dBit=0,pMode={1,5},dStyle={"L1_1_0"}},
{ID=1,reg="1",addr=1,dtype="bit",dBit=0,pMode={1,5},dStyle={"L1_1_1"}},
{ID=1,reg="1",addr=2,dtype="bit",dBit=0,pMode={1,5},dStyle={"L1_1_2"}},
{ID=1,reg="1",addr=3,dtype="bit",dBit=0,pMode={1,5},dStyle={"L1_1_3"}},
{ID=1,reg="1",addr=4,dtype="bit",dBit=0,pMode={1,5},dStyle={"L1_1_4"}},
{ID=1,reg="1",addr=5,dtype="bit",dBit=0,pMode={1,5},dStyle={"L1_1_5"}},
{ID=1,reg="1",addr=6,dtype="bit",dBit=0,pMode={1,5},dStyle={"L1_1_6"}},
{ID=1,reg="1",addr=7,dtype="bit",dBit=0,pMode={1,5},dStyle={"L1_1_7"}},
{ID=1,reg="1",addr=8,dtype="bit",dBit=0,pMode={1,5},dStyle={"L1_1_8"}},
{ID=1,reg="1",addr=9,dtype="bit",dBit=0,pMode={1,5},dStyle={"L1_1_9"}},
{ID=1,reg="1",addr=10,dtype="bit",dBit=0,pMode={1,5},dStyle={"L1_1_10"}},
{ID=1,reg="1",addr=11,dtype="bit",dBit=0,pMode={1,5},dStyle={"L1_1_11"}},
{ID=1,reg="1",addr=12,dtype="bit",dBit=0,pMode={1,5},dStyle={"L1_1_12"}},
{ID=1,reg="1",addr=12,dtype="bit",dBit=0,pMode={2,0},dStyle={"L1_1_12_C"}},
{ID=1,reg="2",addr=0,dtype="bit",dBit=0,pMode={1,6},dStyle={"L1_2_0"}},
{ID=1,reg="2",addr=1,dtype="bit",dBit=0,pMode={1,6},dStyle={"L1_2_1"}},
{ID=1,reg="2",addr=2,dtype="bit",dBit=0,pMode={1,6},dStyle={"L1_2_2"}},
{ID=1,reg="2",addr=3,dtype="bit",dBit=0,pMode={1,6},dStyle={"L1_2_3"}},
{ID=1,reg="2",addr=4,dtype="bit",dBit=0,pMode={1,6},dStyle={"L1_2_4"}},
{ID=1,reg="2",addr=5,dtype="bit",dBit=0,pMode={1,6},dStyle={"L1_2_5"}},
{ID=1,reg="2",addr=6,dtype="bit",dBit=0,pMode={1,6},dStyle={"L1_2_6"}},
{ID=1,reg="2",addr=7,dtype="bit",dBit=0,pMode={1,6},dStyle={"L1_2_7"}},
{ID=1,reg="2",addr=8,dtype="bit",dBit=0,pMode={1,6},dStyle={"L1_2_8"}},
{ID=1,reg="2",addr=9,dtype="bit",dBit=0,pMode={1,6},dStyle={"L1_2_9"}},
{ID=1,reg="2",addr=10,dtype="bit",dBit=0,pMode={1,6},dStyle={"L1_2_10"}},
{ID=1,reg="2",addr=11,dtype="bit",dBit=0,pMode={1,6},dStyle={"L1_2_11"}},
{ID=1,reg="2",addr=12,dtype="bit",dBit=0,pMode={1,6},dStyle={"L1_2_12"}},
{ID=1,reg="2",addr=12,dtype="bit",dBit=0,pMode={2,0},dStyle={"L1_2_12_C"}},
{ID=1,reg="3",addr=0,dtype="bit",dBit=0,pMode={1,7},dStyle={"L1_3_0_0"}},
{ID=1,reg="3",addr=0,dtype="bit",dBit=1,pMode={1,7},dStyle={"L1_3_0_1"}},
{ID=1,reg="3",addr=0,dtype="bit",dBit=2,pMode={1,7},dStyle={"L1_3_0_2"}},
{ID=1,reg="3",addr=0,dtype="bit",dBit=3,pMode={1,7},dStyle={"L1_3_0_3"}},
{ID=1,reg="3",addr=0,dtype="bit",dBit=4,pMode={1,7},dStyle={"L1_3_0_4"}},
{ID=1,reg="3",addr=0,dtype="bit",dBit=5,pMode={1,7},dStyle={"L1_3_0_5"}},
{ID=1,reg="3",addr=0,dtype="bit",dBit=6,pMode={1,7},dStyle={"L1_3_0_6"}},
{ID=1,reg="3",addr=0,dtype="bit",dBit=7,pMode={1,7},dStyle={"L1_3_0_7"}},
{ID=1,reg="3",addr=0,dtype="bit",dBit=8,pMode={1,7},dStyle={"L1_3_0_8"}},
{ID=1,reg="3",addr=0,dtype="bit",dBit=9,pMode={1,7},dStyle={"L1_3_0_9"}},
{ID=1,reg="3",addr=0,dtype="bit",dBit=10,pMode={1,7},dStyle={"L1_3_0_10"}},
{ID=1,reg="3",addr=0,dtype="bit",dBit=11,pMode={1,7},dStyle={"L1_3_0_11"}},
{ID=1,reg="3",addr=0,dtype="bit",dBit=12,pMode={1,7},dStyle={"L1_3_0_12"}},
{ID=1,reg="3",addr=0,dtype="bit",dBit=13,pMode={1,7},dStyle={"L1_3_0_13"}},
{ID=1,reg="3",addr=0,dtype="bit",dBit=14,pMode={1,7},dStyle={"L1_3_0_14"}},
{ID=1,reg="3",addr=0,dtype="bit",dBit=15,pMode={1,7},dStyle={"L1_3_0_15"}},
{ID=1,reg="3",addr=0,dtype="bit",dBit=15,pMode={2,0},dStyle={"L1_3_0_15_C"}},
{ID=1,reg="3",addr=1,dtype="byte", dBit=0, pMode={1,8},dStyle={"L1_3_1_0"}},
{ID=1,reg="3",addr=1,dtype="byte", dBit=1, pMode={1,8},dStyle={"L1_3_1_1"}},
{ID=1,reg="3",addr=1,dtype="byte", dBit=1, pMode={2,0},dStyle={"L1_3_1_1_C"}},
{ID=1,reg="3",addr=1,dtype="byte", pMode={2,0},dStyle={"L1_3_1_C"}},
{ID=1,reg="3",addr=1,dtype="byte", pMode={1,8},dStyle={"L1_3_1_O1"}, dOffset={{"+",10}}},
{ID=1,reg="3",addr=1,dtype="byte", pMode={1,8},dStyle={"L1_3_1_O2"}, dOffset={{"/",3}, {"+", 10}}},
{ID=1,reg="3",addr=2,dtype="ubyte", pMode={1,8},dStyle={"L1_3_2"}},
{ID=1,reg="3",addr=2,dtype="ubyte", pMode={2,0},dStyle={"L1_3_2_C"}},
{ID=1,reg="3",addr=2,dtype="ubyte", pMode={1,8},dStyle={"L1_3_2_O1"}, dOffset={{"+",10}}},
{ID=1,reg="3",addr=2,dtype="ubyte", pMode={1,8},dStyle={"L1_3_2_O2"}, dOffset={{"*",2.123}, {".", 1}}},
{ID=1,reg="3",addr=3,dtype="short", pMode={1,8},dStyle={"L1_3_3"}},
{ID=1,reg="3",addr=3,dtype="short", pMode={2,0},dStyle={"L1_3_3_C"}},
{ID=1,reg="3",addr=3,dtype="short", pMode={1,8},dStyle={"L1_3_3_O1"}, dOffset={{"+",10}}},
{ID=1,reg="3",addr=3,dtype="short", pMode={1,8},dStyle={"L1_3_3_O2"}, dOffset={{"*",2}, {"+", 10}}},
{ID=1,reg="3",addr=4,dtype="ushort", pMode={1,8},dStyle={"L1_3_4"}},
{ID=1,reg="3",addr=4,dtype="ushort", pMode={2,0},dStyle={"L1_3_4_C"}},
{ID=1,reg="3",addr=4,dtype="ushort", pMode={1,8},dStyle={"L1_3_4_O1"}, dOffset={{"+",10}}},
{ID=1,reg="3",addr=4,dtype="ushort", pMode={1,8},dStyle={"L1_3_4_O2"}, dOffset={{"*",2}, {"+", 10}}},
{ID=1,reg="3",addr=5,dtype="int", pMode={1,8},dStyle={"L1_3_5"}},
{ID=1,reg="3",addr=5,dtype="int", format="ABCD", pMode={1,8},dStyle={"L1_3_5_ABCD"}},
{ID=1,reg="3",addr=5,dtype="int", pMode={2,0},dStyle={"L1_3_5_C"}},
{ID=1,reg="3",addr=5,dtype="int", pMode={1,8},dStyle={"L1_3_5_O1"}, dOffset={{"+",10}}},
{ID=1,reg="3",addr=5,dtype="int", pMode={1,8},dStyle={"L1_3_5_O2"}, dOffset={{"*",2}, {"+", 10}}},
{ID=1,reg="3",addr=7,dtype="uint", pMode={1,8},dStyle={"L1_3_7"}},
{ID=1,reg="3",addr=7,dtype="uint", format="ABCD", pMode={1,8},dStyle={"L1_3_7_ABCD"}},
{ID=1,reg="3",addr=7,dtype="uint", pMode={2,0},dStyle={"L1_3_7_C"}},
{ID=1,reg="3",addr=7,dtype="uint", pMode={1,8},dStyle={"L1_3_7_O1"}, dOffset={{"+",10}}},
{ID=1,reg="3",addr=7,dtype="uint", pMode={1,8},dStyle={"L1_3_7_O2"}, dOffset={{"*",2}, {"+", 10}}},
{ID=1,reg="3",addr=9,dtype="float", pMode={1,8},dStyle={"L1_3_9"}},
{ID=1,reg="3",addr=9,dtype="float", format="ABCD", pMode={1,8},dStyle={"L1_3_9_ABCD"}},
{ID=1,reg="3",addr=9,dtype="float", pMode={2,0},dStyle={"L1_3_9_C"}},
{ID=1,reg="3",addr=9,dtype="float", pMode={1,8},dStyle={"L1_3_9_O1"}, dOffset={{"+",10}}},
{ID=1,reg="3",addr=9,dtype="float", pMode={1,8},dStyle={"L1_3_9_O2"}, dOffset={{"*",1.5}, {"+", 10}}},
{ID=1,reg="3",addr=9,dtype="float", pMode={1,8},dStyle={"L1_3_9_O3"}, dOffset={{"*",1.125}, {".", 0}}},
{ID=1,reg="3",addr=9,dtype="float", pMode={1,8},dStyle={"L1_3_9_O4"}, dOffset={{"*",1.125}, {".", 1}}},
{ID=1,reg="3",addr=9,dtype="float", pMode={1,8},dStyle={"L1_3_9_O5"}, dOffset={{"*",1.125}, {".", 2}}},
{ID=1,reg="3",addr=9,dtype="float", pMode={1,8},dStyle={"L1_3_9_O6"}, dOffset={{"*",1.125}, {".", 3}}},
{ID=1,reg="3",addr=9,dtype="float", pMode={1,8},dStyle={"L1_3_9_O7"}, dOffset={{".",3}}},
{ID=1,reg="3",addr=11,dtype="bytes", len=20, pMode={1,8},dStyle={"L1_3_11"}},
{ID=1,reg="3",addr=11,dtype="bytes", len=20, pMode={2,0},dStyle={"L1_3_11_C"}},
{ID=1,reg="4",addr=0,dtype="bit",dBit=0,pMode={1,9},dStyle={"L1_4_0_0"}},
{ID=1,reg="4",addr=0,dtype="bit",dBit=1,pMode={1,9},dStyle={"L1_4_0_1"}},
{ID=1,reg="4",addr=0,dtype="bit",dBit=2,pMode={1,9},dStyle={"L1_4_0_2"}},
{ID=1,reg="4",addr=0,dtype="bit",dBit=3,pMode={1,9},dStyle={"L1_4_0_3"}},
{ID=1,reg="4",addr=0,dtype="bit",dBit=4,pMode={1,9},dStyle={"L1_4_0_4"}},
{ID=1,reg="4",addr=0,dtype="bit",dBit=5,pMode={1,9},dStyle={"L1_4_0_5"}},
{ID=1,reg="4",addr=0,dtype="bit",dBit=6,pMode={1,9},dStyle={"L1_4_0_6"}},
{ID=1,reg="4",addr=0,dtype="bit",dBit=7,pMode={1,9},dStyle={"L1_4_0_7"}},
{ID=1,reg="4",addr=0,dtype="bit",dBit=8,pMode={1,9},dStyle={"L1_4_0_8"}},
{ID=1,reg="4",addr=0,dtype="bit",dBit=9,pMode={1,9},dStyle={"L1_4_0_9"}},
{ID=1,reg="4",addr=0,dtype="bit",dBit=10,pMode={1,9},dStyle={"L1_4_0_10"}},
{ID=1,reg="4",addr=0,dtype="bit",dBit=11,pMode={1,9},dStyle={"L1_4_0_11"}},
{ID=1,reg="4",addr=0,dtype="bit",dBit=12,pMode={1,9},dStyle={"L1_4_0_12"}},
{ID=1,reg="4",addr=0,dtype="bit",dBit=13,pMode={1,9},dStyle={"L1_4_0_13"}},
{ID=1,reg="4",addr=0,dtype="bit",dBit=14,pMode={1,9},dStyle={"L1_4_0_14"}},
{ID=1,reg="4",addr=0,dtype="bit",dBit=15,pMode={1,9},dStyle={"L1_4_0_15"}},
{ID=1,reg="4",addr=0,dtype="bit",dBit=15,pMode={2,0},dStyle={"L1_4_0_15"}},
{ID=1,reg="4",addr=1,dtype="byte", pMode={1,8},dStyle={"L1_4_1"}},
{ID=1,reg="4",addr=1,dtype="byte", pMode={2,0},dStyle={"L1_4_1_C"}},
{ID=1,reg="4",addr=1,dtype="byte", pMode={1,8},dStyle={"L1_4_1_O1"}, dOffset={{"+",10}}},
{ID=1,reg="4",addr=1,dtype="byte", pMode={1,8},dStyle={"L1_4_1_O2"}, dOffset={{"*",2}, {"+", 10}}},
{ID=1,reg="4",addr=2,dtype="ubyte", pMode={1,8},dStyle={"L1_4_2"}},
{ID=1,reg="4",addr=2,dtype="ubyte", pMode={2,0},dStyle={"L1_4_2_C"}},
{ID=1,reg="4",addr=2,dtype="ubyte", pMode={1,8},dStyle={"L1_4_2_O1"}, dOffset={{"+",10}}},
{ID=1,reg="4",addr=2,dtype="ubyte", pMode={1,8},dStyle={"L1_4_2_O2"}, dOffset={{"*",2}, {"+", 10}}},
{ID=1,reg="4",addr=3,dtype="short", pMode={1,8},dStyle={"L1_4_3"}},
{ID=1,reg="4",addr=3,dtype="short", pMode={2,0},dStyle={"L1_4_3_C"}},
{ID=1,reg="4",addr=3,dtype="short", pMode={1,8},dStyle={"L1_4_3_O1"}, dOffset={{"+",10}}},
{ID=1,reg="4",addr=3,dtype="short", pMode={1,8},dStyle={"L1_4_3_O2"}, dOffset={{"*",2}, {"+", 10}}},
{ID=1,reg="4",addr=4,dtype="ushort", pMode={1,8},dStyle={"L1_4_4"}},
{ID=1,reg="4",addr=4,dtype="ushort", pMode={2,0},dStyle={"L1_4_4_C"}},
{ID=1,reg="4",addr=4,dtype="ushort", pMode={1,8},dStyle={"L1_4_4_O1"}, dOffset={{"+",10}}},
{ID=1,reg="4",addr=4,dtype="ushort", pMode={1,8},dStyle={"L1_4_4_O2"}, dOffset={{"*",2}, {"+", 10}}},
{ID=1,reg="4",addr=5,dtype="int", pMode={1,8},dStyle={"L1_4_5"}},
{ID=1,reg="4",addr=5,dtype="int", format="ABCD", pMode={1,8},dStyle={"L1_4_5_ABCD"}},
{ID=1,reg="4",addr=5,dtype="int", pMode={2,0},dStyle={"L1_4_5_C"}},
{ID=1,reg="4",addr=5,dtype="int", pMode={1,8},dStyle={"L1_4_5_O1"}, dOffset={{"+",10}}},
{ID=1,reg="4",addr=5,dtype="int", pMode={1,8},dStyle={"L1_4_5_O2"}, dOffset={{"*",2}, {"+", 10}}},
{ID=1,reg="4",addr=7,dtype="uint", pMode={1,8},dStyle={"L1_4_7"}},
{ID=1,reg="4",addr=7,dtype="uint", format="ABCD", pMode={1,8},dStyle={"L1_3_7_ABCD"}},
{ID=1,reg="4",addr=7,dtype="uint", pMode={2,0},dStyle={"L1_4_7_C"}},
{ID=1,reg="4",addr=7,dtype="uint", pMode={1,8},dStyle={"L1_4_7_O1"}, dOffset={{"+",10}}},
{ID=1,reg="4",addr=7,dtype="uint", pMode={1,8},dStyle={"L1_4_7_O2"}, dOffset={{"*",2}, {"+", 10}}},
{ID=1,reg="4",addr=9,dtype="float", pMode={1,8},dStyle={"L1_4_9"}},
{ID=1,reg="4",addr=9,dtype="float", format="ABCD", pMode={1,8},dStyle={"L1_4_9_ABCD"}},
{ID=1,reg="4",addr=9,dtype="float", pMode={2,0},dStyle={"L1_4_9_C"}},
{ID=1,reg="4",addr=9,dtype="float", pMode={1,8},dStyle={"L1_4_9_O1"}, dOffset={{"+",10}}},
{ID=1,reg="4",addr=9,dtype="float", pMode={1,8},dStyle={"L1_4_9_O2"}, dOffset={{"*",1.5}, {"+", 10}}},
{ID=1,reg="4",addr=9,dtype="float", pMode={1,8},dStyle={"L1_4_9_O3"}, dOffset={{"*",1.125}, {".", 0}}},
{ID=1,reg="4",addr=9,dtype="float", pMode={1,8},dStyle={"L1_4_9_O4"}, dOffset={{"*",1.125}, {".", 1}}},
{ID=1,reg="4",addr=9,dtype="float", pMode={1,8},dStyle={"L1_4_9_O5"}, dOffset={{"*",1.125}, {".", 2}}},
{ID=1,reg="4",addr=9,dtype="float", pMode={1,8},dStyle={"L1_4_9_O6"}, dOffset={{"*",1.125}, {".", 3}}},
{ID=1,reg="4",addr=11,dtype="bytes", len=20, pMode={1,8},dStyle={"L1_4_11"}},
{ID=1,reg="4",addr=11,dtype="bytes", len=20, pMode={2,0},dStyle={"L1_4_11_C"}},
{ID=1,reg="5",addr=0,dtype="bit",dBit=0,pMode={1,5},dStyle={"L1_5_0"}},
{ID=1,reg="5",addr=1,dtype="bit",dBit=0,pMode={1,5},dStyle={"L1_5_1"}},
{ID=1,reg="5",addr=2,dtype="bit",dBit=0,pMode={1,5},dStyle={"L1_5_2"}},
{ID=1,reg="5",addr=3,dtype="bit",dBit=0,pMode={1,5},dStyle={"L1_5_3"}},
{ID=1,reg="5",addr=4,dtype="bit",dBit=0,pMode={1,5},dStyle={"L1_5_4"}},
{ID=1,reg="5",addr=5,dtype="bit",dBit=0,pMode={1,5},dStyle={"L1_5_5"}},
{ID=1,reg="5",addr=6,dtype="bit",dBit=0,pMode={1,5},dStyle={"L1_5_6"}},
{ID=1,reg="5",addr=7,dtype="bit",dBit=0,pMode={1,5},dStyle={"L1_5_7"}},
{ID=1,reg="5",addr=8,dtype="bit",dBit=0,pMode={1,5},dStyle={"L1_5_8"}},
{ID=1,reg="5",addr=9,dtype="bit",dBit=0,pMode={1,5},dStyle={"L1_5_9"}},
{ID=1,reg="5",addr=10,dtype="bit",dBit=0,pMode={1,5},dStyle={"L1_5_10"}},
{ID=1,reg="5",addr=11,dtype="bit",dBit=0,pMode={1,5},dStyle={"L1_5_11"}},
{ID=1,reg="5",addr=12,dtype="bit",dBit=0,pMode={1,5},dStyle={"L1_5_12"}},
{ID=1,reg="6",addr=0,dtype="byte", pMode={2,0},dStyle={"L1_6_0"}},
{ID=1,reg="6",addr=1,dtype="short", pMode={2,0},dStyle={"L1_6_1"}},
{ID=1,reg="16",addr=0,dtype="byte", pMode={2,0},dStyle={"L1_16_0"}},
{ID=1,reg="16",addr=0,dtype="byte", pMode={2,0},dStyle={"L1_16_0_O1"}, dOffset={{"+", 5}}},
{ID=1,reg="16",addr=1,dtype="short", pMode={2,0},dStyle={"L1_16_1"}},
{ID=1,reg="16",addr=1,dtype="short", pMode={2,0},dStyle={"L1_16_1_O1"}, dOffset={{"+", 5}}},
{ID=1,reg="16",addr=2,dtype="int", pMode={2,0},dStyle={"L1_16_2"}},
{ID=1,reg="16",addr=2,dtype="int", pMode={2,0},dStyle={"L1_16_2_O1"}, dOffset={{"+", 5}}},
{ID=1,reg="16",addr=9,dtype="float", pMode={2,0},dStyle={"L1_16_9"}},
{ID=1,reg="16",addr=9,dtype="float", pMode={2,0},dStyle={"L1_16_9_O1"}, dOffset={{"+", 5}}},
},
},
},
}
文档更新时间: 2025-06-30 14:56 作者：CGL
